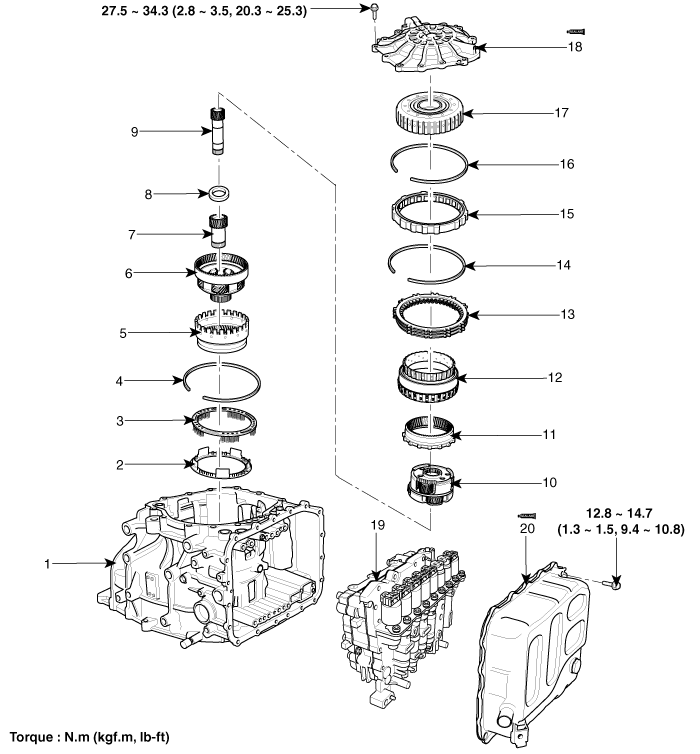

Components (1)

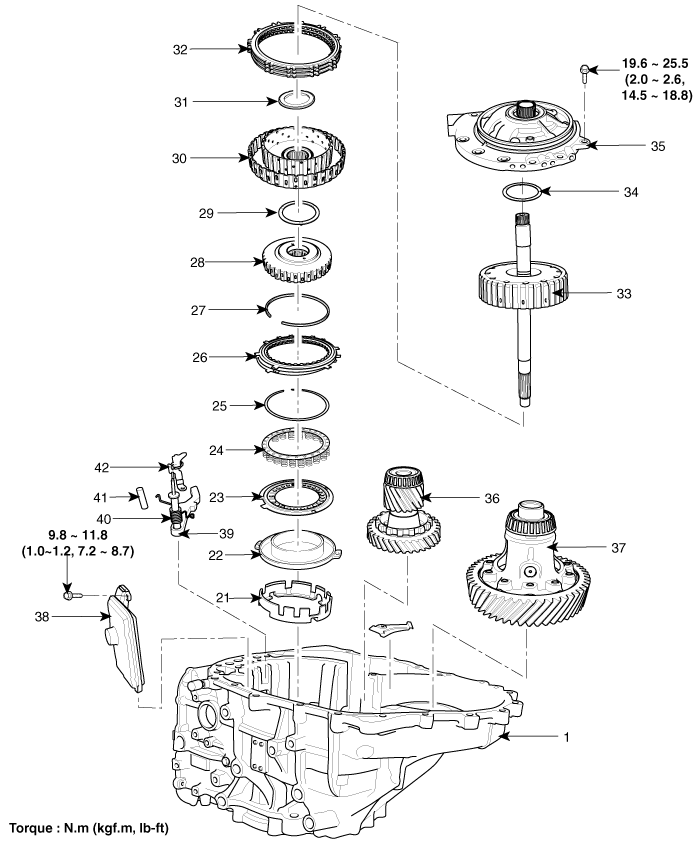

Components (2)

Components (2)

1. Automatic transaxle case
2. Low & reverse brake piston
3. Low & reverse brake return spring
4. Snap ring
5. Front annulus gear assembly
6. Front planetary gear assembly
7. Front sun gear assembly
8. Bearing
9. Middle sun gear assembly
10. Middle & rear planetary gear assembly
11. Rear annulus gear assembly
12. One way clutch inner race assembly
13. Low & reverse brake disc set
14. Snap ring
15. One way clutch assembly
16. Snap ring
17. Overdrive clutch assembly
18. Rear cover assembly
19. Valve body assembly
20. Valve body cover
21.Under drive brake retainer
 22. Under drive brake chamber
23. Under drive brake piston
24. Under drive brake spring
25. Snap ring
26. Under drive brake disc set
27. Snap ring
28. Under drive brake hub assembly
29. Thrust washer
30. 35R & 2/6 hub assembly
31. Thrust bearing
32. 2/6 brake disc set
33. 35R clutch assembly
34. Thrust washer
35. Oil pump assembly
36. Transfer driven gear assembly
37. Differential assembly
38. Oil filter assembly
39. Parking sprag
40. Parking sprag shaft & spring
41. Support shaft
42. Parking rod guide

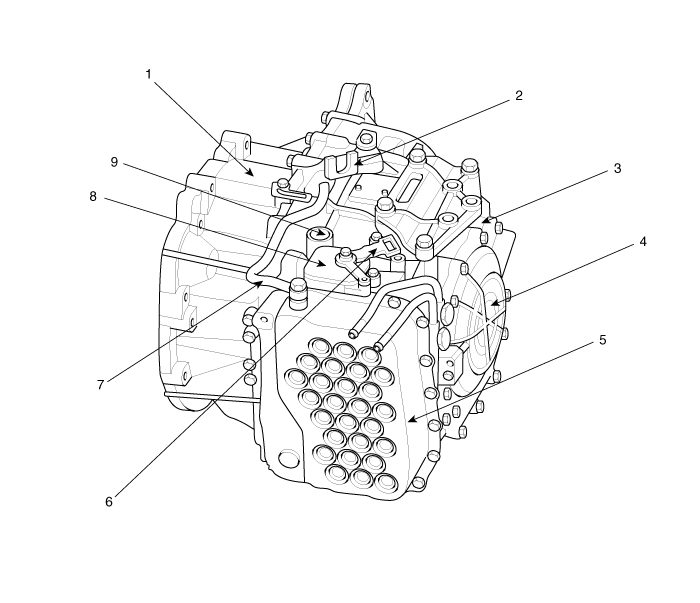

Components Location

1. Converter housing
2. Shift cable bracket
3. Automatic transaxle case
4. Rear cover
5. Valve body cover
 6. Manual control lever
7. Air breather hose
8. Inhibitor switch
9. Solenoid valve connector


    Repair procedures
    Service Adjustment Procedure Oil level Check A check of ATF level is not normally required during scheduled ...

    Automatic Transaxle. Repair procedures
    Removal 1. Remove the following items; A. Air duct (A) and engine cover (B). (Refer to "Intake and Exhaust system" in EM group. ...
