Hyundai Sonata: Components and Components Location
Components
|

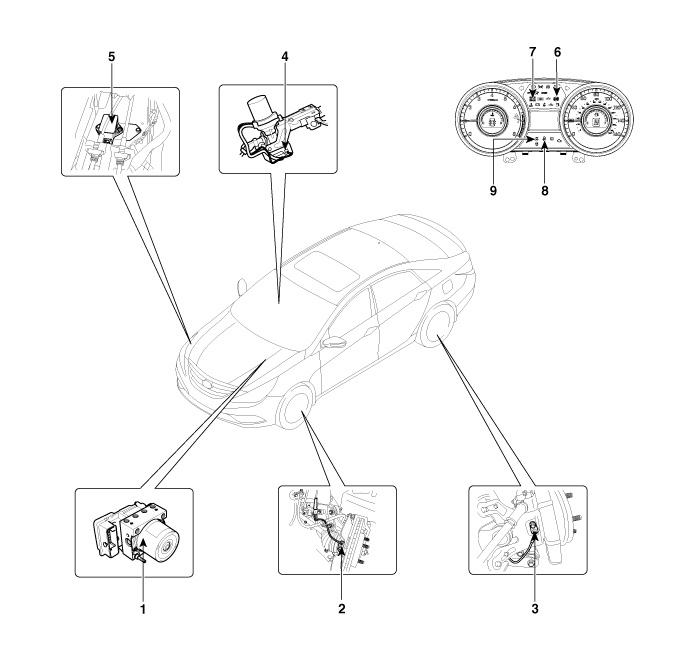

1. ESC Control Module (HECU) 2. Front Wheel Speed Sensor 3. Rear Wheel Speed Sensor 4. Steering Wheel Angle Sensor 5. Yaw-late & Lateral G SEnsor |
6. ABS Warning Lamp 7. Parking/EBD Warning Lamp 8. ESC OFF Lamp 9. ESC Function/Warning Lamp |
Description and Operation
Description of ESC
Optimum driving safety now has a name : ESC, the Electronic Stability
Control.
ESC recognizes critical driving conditions, such as panic reactions in
dangerous sit ...
