Hyundai Sonata: Crankshaft Position Sensor (CKPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Crankshaft Position Sensor (CKPS). Schematic Diagrams

Hyundai Sonata YF 2011-2014 Service Manual / Engine Control/Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS). Schematic Diagrams

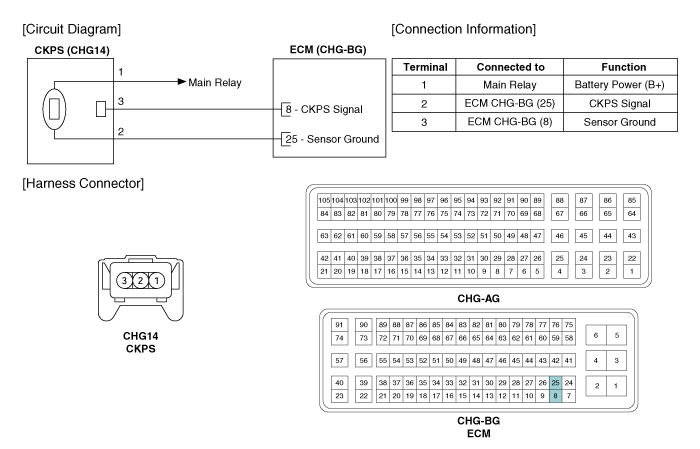

Circuit Diagram


    Crankshaft Position Sensor (CKPS). Repair procedures
    Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” ...
