Hyundai Sonata: Manual climate control system

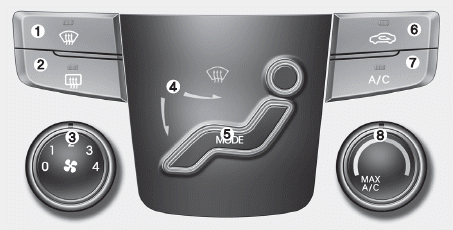

Type A

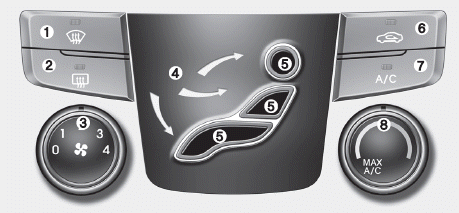

Type B
1. Front windshield defrost button
2. Rear window defroster button
3. Fan speed control knob
4. Mode indicator
5. Mode selection button
6. Air intake control button
7. Air conditioning button
8. Temperature control knob
- Heating and air conditioning
- Temperature control
- Air intake control
- System operation
- Climate control air filter
- Checking the amount of air conditioner refrigerant and compressor lubricant
Defroster
CAUTION
To prevent damage to the conductors bonded to the inside surface of the rear
window, never use sharp instruments or window cleaners containing abrasives to clean
the window.
✽ NOT ...
Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired position. To improve the effectiveness of heating
and cooling :
- Heating:
- Cooling: 3. Set the temperature control to the desired position.
...
