Hyundai Sonata: Relay Box (Engine Compartment). Schematic Diagrams - Fuses And Relays - Body Electrical SystemHyundai Sonata: Relay Box (Engine Compartment). Schematic Diagrams

Hyundai Sonata YF 2011-2014 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment). Schematic Diagrams

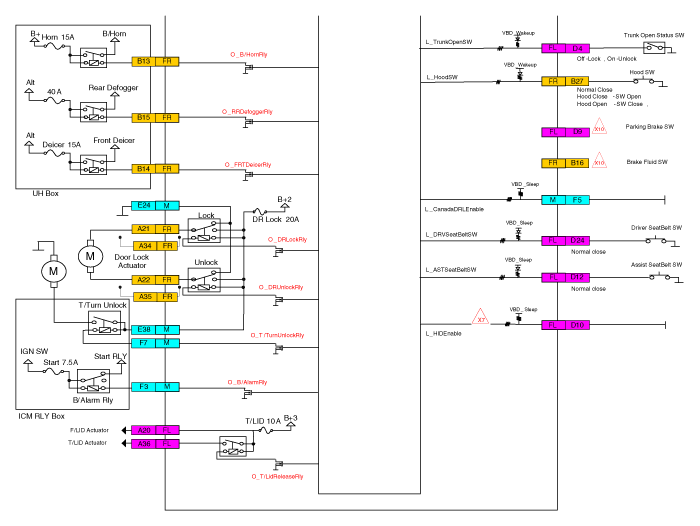

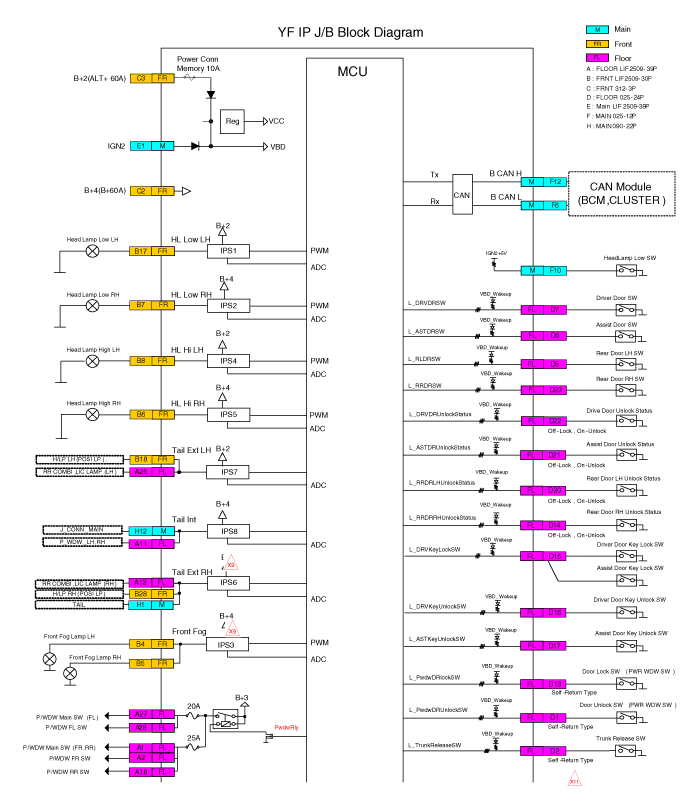

Circuit Diagram


    Relay Box (Engine Compartment). Description and Operation
    Description Network Configuration The Network of the SJB(Smart Junction Box) consists of Low speed CAN as shown in the following figure. Termination Resistor The SJB has CAN ter ...
