Hyundai Sonata: Schematic Diagrams - SRSCM - RestraintHyundai Sonata: Schematic Diagrams

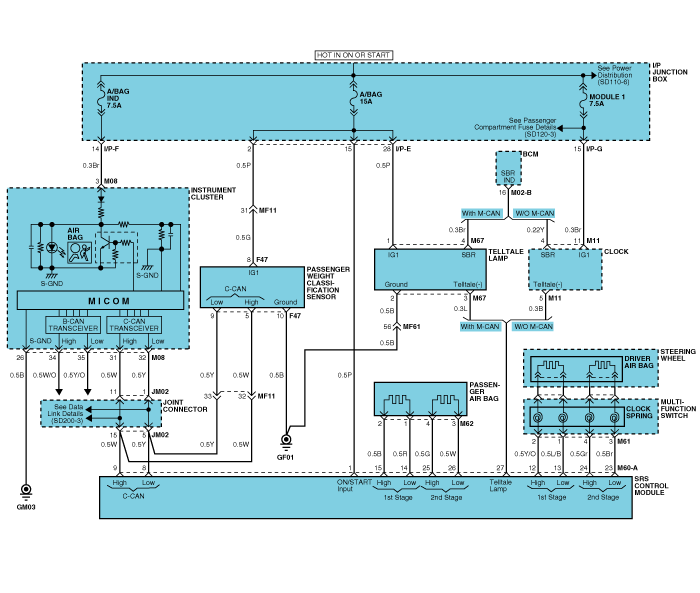

Circuit Diagram (1)

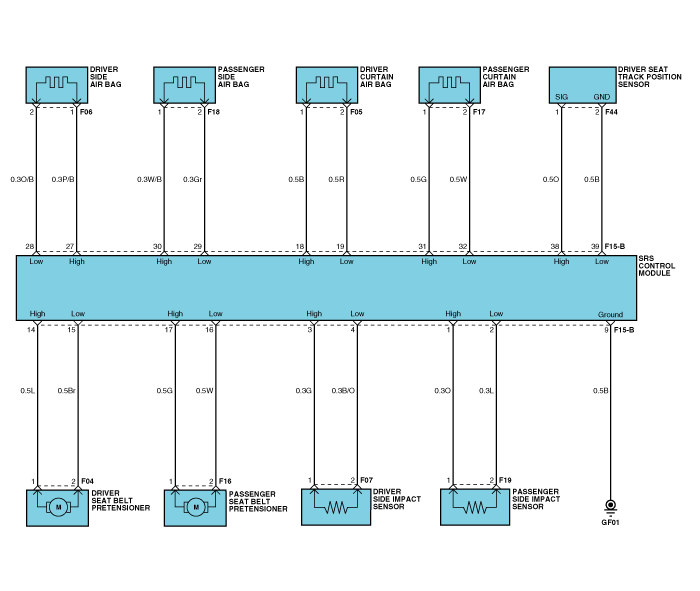

Circuit Diagram (2)

Circuit Diagram (2)

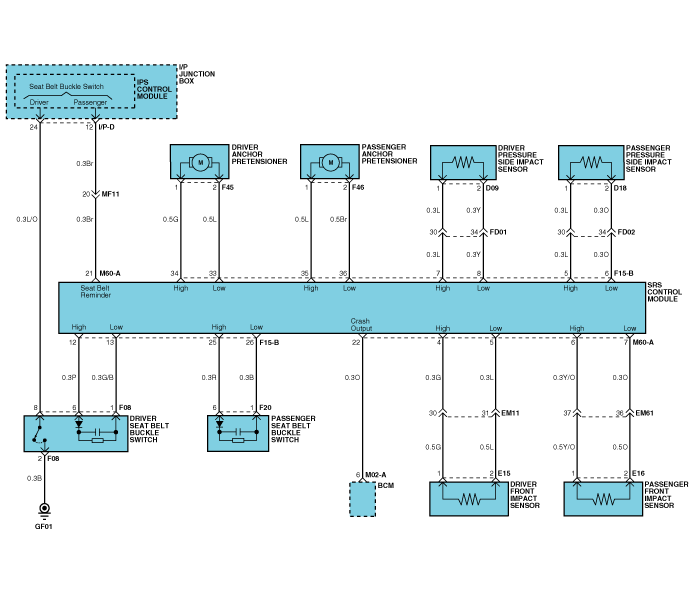

Circuit Diagram (3)

Circuit Diagram (3)

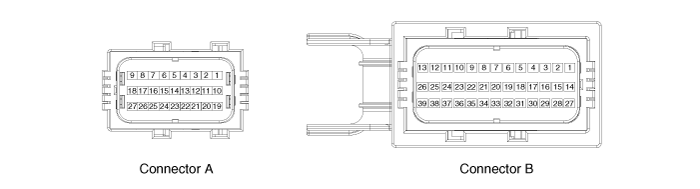

SRSCM Connector Terminal

Pin
Function (Connector A)
 Pin
Function (Connector A)
1
 Ignition
 1
 Side impact sensor [Passenger] High
2
 -
 2
 Side impact sensor [Passenger] Low
3
 -
 3
 Side impact sensor [Driver] High
4
 Front impact sensor [Driver] High
 4
 Side impact sensor [Driver] Low
5
 Front impact sensor [Driver] Low
 5
 Pressure side impact sensor [Passenger] High
6
 Front impact sensor [Passenger] High
 6
 Pressure side impact sensor [Passenger] Low
7
 Front impact sensor [Passenger] Low
 7
 Pressure side impact sensor [Driver] High
8
 CAN_Low
 8
 Pressure side impact sensor [Driver] Low
9
 CAN_High
 9
 Ground
10
  Shorting bar
 10
 -
11
  Shorting bar
 11
 -
12
 (1st stage) Driver airbag High
 12
 Seat belt buckle switch [Driver] High
13
 (1st stage) Driver airbag Low
 13
 Seat belt buckle switch [Driver] Low
14
 (1st stage) Passenger airbag Low
 14
 Seat belt pretensioner [Driver] High
15
 (1st stage) Passenger airbag High
 15
 Seat belt pretensioner [Driver] Low
16
  -
 16
 Seat belt pretensioner [passenger] Low
17
 -
 17
 Seat belt pretensioner [passenger] High
18
 -
 18
 Curtain airbag [Driver] High
19
 -
 19
 Curtain airbag [Driver] Low
20
 -
 20
 -
21
 Seat belt reminder
 21
 -
22
 Crash Output
 22
 -
23
 (2nd stage) Driver airbag Low
 23
 -
24
 (2nd stage) Driver airbag High
 24
 -
25
 (2nd stage) Passenger airbag High
 25
 Seat belt buckle swich [Passenger] High
26
 (2nd stage) Passenger airbag Low
 26
 Seat belt buckle swich [Passenger] Low
27
  Telltale Indicator
 27
 Side airbag [Driver] High


28
 Side airbag [Driver] Low


29
 Side airbag [Passenger] Low


30
 Side airbag [Passenger] High


 31
 Curtain airbag [Passenger] High


 32
 Curtain airbag [Passenger] Low


33
 Anchor Pretensioner [Driver] Low


 34
 Anchor Pretensioner [Driver] High
　
 　
 35
 Anchor Pretensioner [Passenger] High
　
 　
 36
 Anchor Pretensioner [Passenger] Low
　
 　
 37
 -
　
 　
 38
 Seat track position sensor [Driver] High


39
 Seat track position sensor [Driver] Low
