Hyundai Sonata: Shift Lever. Components and Components Location
Components
|

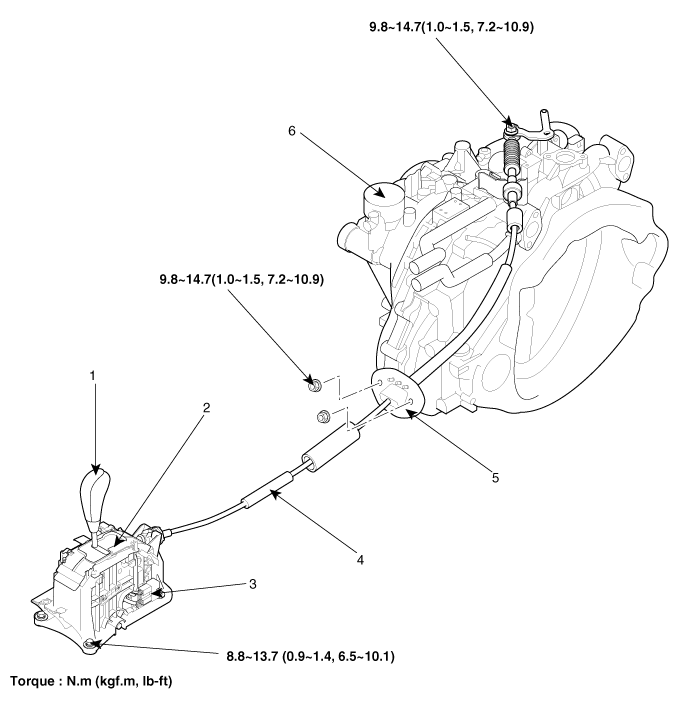

1. Shift lever knob 2. Shift lever assembly 3. Sport mode connector |
4. Control cable assembly 5. Retainer 6. Automatic transaxle assembly |
Components and Components Location
Components Location
1. Input speed sensor
2. Output speed sensor
3. Solenoid valve connector
4. Oil temperature sensor
5. Valve body assembly
6. Solenoid va ...
Shift Lever. Repair procedures
Removal
1.
Remove the center console assembly. (Refer to "Interior"
in BD group.)
2.
Remove the control cable (A).
...
