Hyundai Sonata: Under Body. Body Repair - Body Dimensions - Body (Interior and Exterior)Hyundai Sonata: Under Body. Body Repair

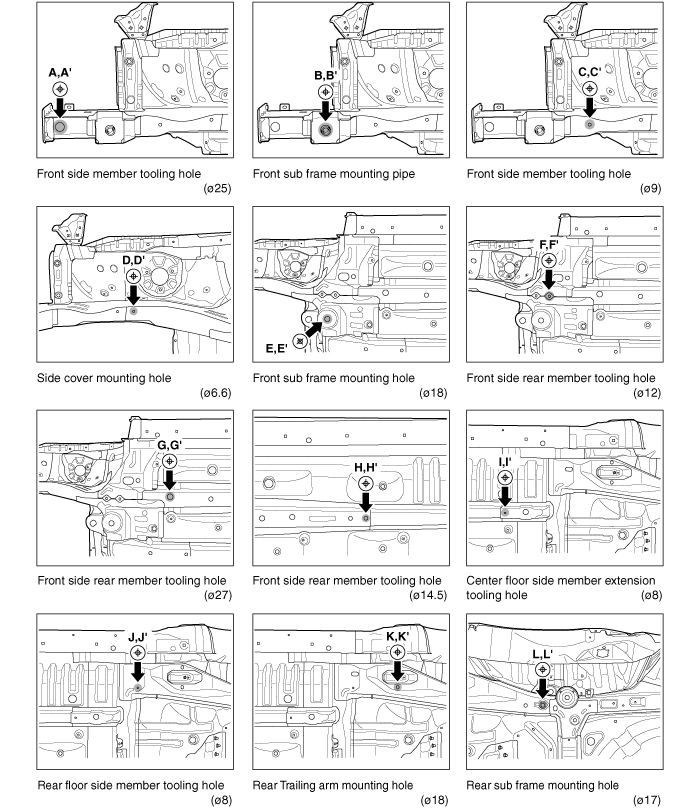

Projected Dimensions

Actual- Measurement Dimensions

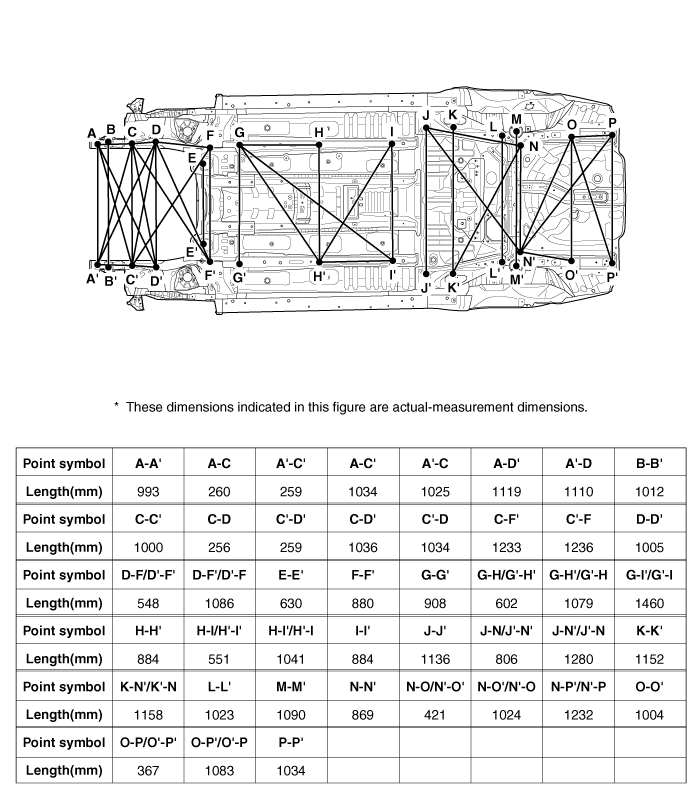

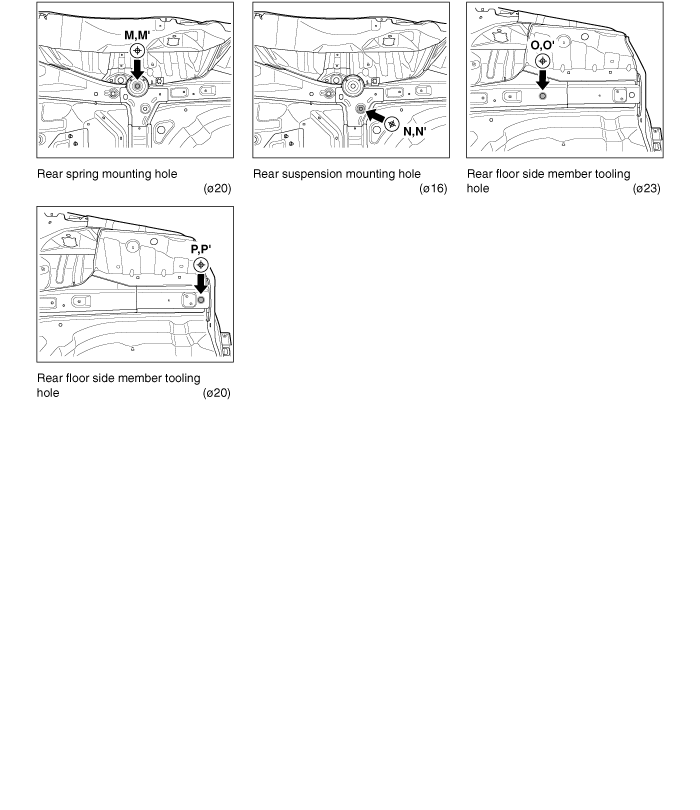

Actual- Measurement Dimensions
