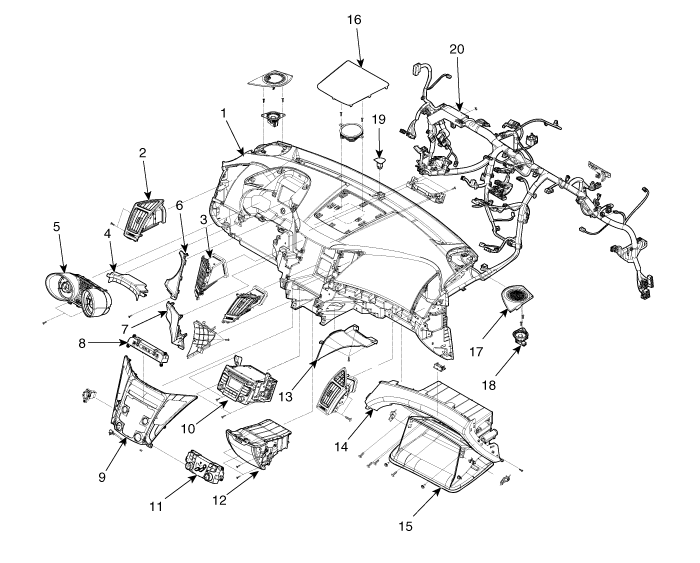

Components

1. Main crash pad
2. Air vent
3. Center air vent
4. Cluster lower panel
5. Cluster assembly
6. Cluster facia side panel
7. Key set bezel
 8. Clock assembly
9. Center facia panel
10. Audio assembly
11. Heater control unit
12. Crash pad center lower tray
13. Crash pad center lower panel
14. Glove box housing
 15. Glove box
16. Center speaker grill
17. Side speaker grill
18. Speaker
19. Photo sensor
20. Cowl cross bar


    Console. Repair procedures
    Replacement Floor Console Replacement • When prying with a flat-tip screwdriver, wrap it with ...

    Crash Pad. Repair procedures
    Replacement Cluster Replacement • When prying with a flat-tip screwdriver, wrap it with ...
