Hyundai Sonata: Front Door. Components and Components Location

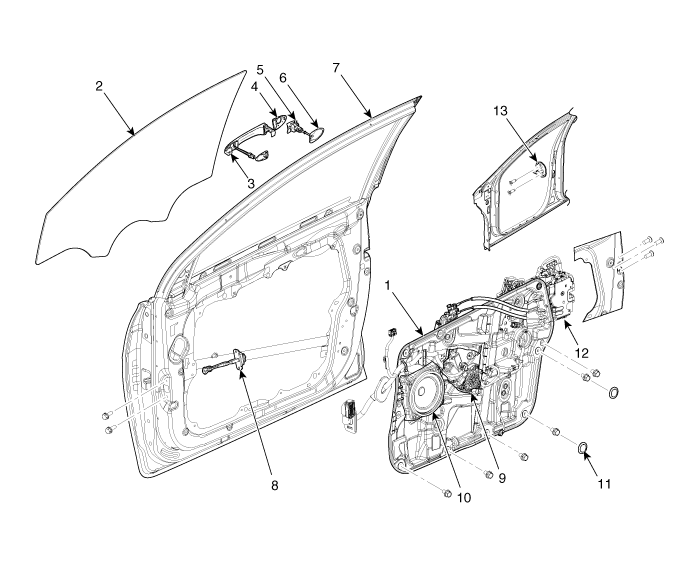

Components
|
1. Door module 2. Window glass 3. Outside handle 4. Outside handle cover 5. Door lock assembly |
6.Door handle pad 7. Door panel 8. Door checker 9.Power window motor 10.Door speaker |
11.Hole plug 12. Door latch assembly 13. Door striker |
Fuel Fill Door. Repair procedures
Replacement
1.
Remove the fuel fill door cap (A).
2.
After loosening the mounting screws, then remove the fuel fill
door catch pac ...
Front Door. Repair procedures
Replacements
Door Trim Replacement
•
Be careful not to scratch the door trim and other parts.
...
