Hyundai Sonata: Start/Stop Button. Components and Components Location - Button Engine Start System - Body Electrical SystemHyundai Sonata: Start/Stop Button. Components and Components Location

Hyundai Sonata YF 2011-2014 Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button. Components and Components Location

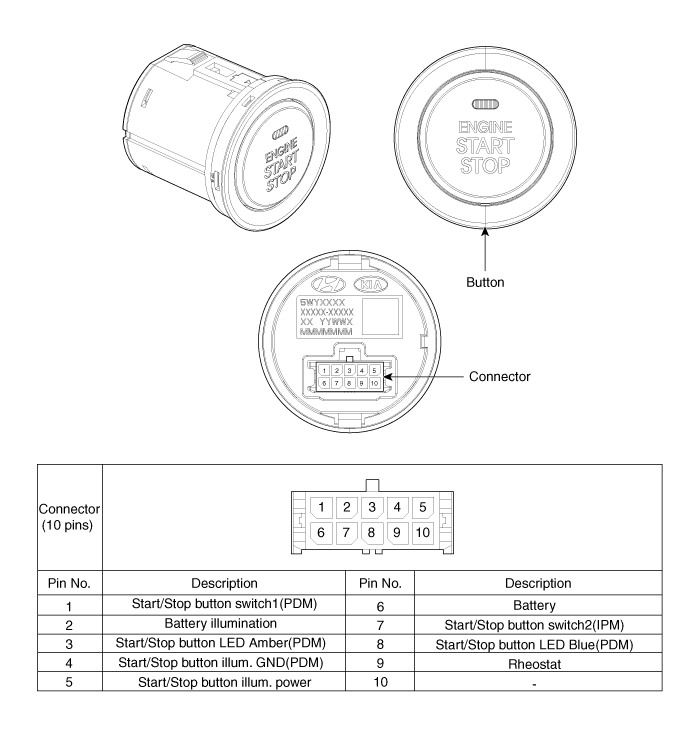

Component


    Description and Operation
    Description System Overview The System offers the following features: - Human machine interface through a 1-stage button, for terminal switching and engine start. ...

    Start/Stop Button. Repair procedures
    Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the crash pad lower panel. (Refer to the BD group - "Crash pad&q ...
