Replacement
Removal
•
|
Put on gloves to protect your hands.
|
•
|
Use seat covers to avoid damaging any surfaces.
|
|
1. |
Remove the following items.
A. |
Front pillar trim
(Refer to the BD group - "Interior Trim")
|
B. |
Inside rear view mirror
(Refer to the BD group - "Mirror")
|
C. |
Windshield wiper arm
(Refer to the BD group - "Cowl Top Cover")
|
D. |
Cowl top cover
(Refer to the BD group - "Cowl Top Cover")
|
E. |
Windshield glass deicer connector
(Refer to the BE group - "Windshield Wiper")
|
|
2. |
Cut out the windshield sealant using the sealant cutting tool
(A)(09861-31100).
• |
Do not scrape down to the painted surface of the
body; damaged paint will interfere with proper bonding.
|
• |
Remove the rubber dam and fastereners from the
body.
|
• |
Mask off surrounding surfaces before painting.
|
|
|
3. |
Remove the windshield (B) carefully using the glass holder (A).
|
Installtion
1. |
With a knife, scrape the old adhesive smooth to a thickness of
about 2mm (0.08 in.) on the bonding surface around the entire windshield
opening flange:
A. |
Do not scrape down to the painted surface of the body;
damaged paint will interfere with proper bonding.
|
B. |
Remove the rubber dam and fastereners from the body.
|
C. |
Mask off surrounding surfaces before painting.
|
|
2. |
Clean the bonding surface with a sponge dampened in alcohol. After
cleaning, keep oil, grease and water from getting on the clean surface.
|
3. |
Install the spacer (A) install the windshield glass (B) temporarily
with marking sure to position them on the center, and then place the
alignment mark (C).
|
4. |
With a sponge, apply a light coat of body primer to the original
adhesive remaining around the windshield opening flange. Let the body
primer dry for at least 10 minutes.
A. |
Do not apply glass primer to the body, and be careful
not to mix up glass and body primer sponges.
|
B. |
Never touch the primed surfaces with your hands.
|
C. |
Mask off the dashboard before painting the flange.
|
|
5. |
Apply a light coat of glass primer to the outside of the fasteners.
• |
Never touch the primed surface with your hand.
If you do, the adhesive may not bond to the glass properly,
causing a leak after the windshield glass is installed.
|
• |
Do not apply body primer to the glass.
|
• |
Keep water, dust, and abrasive materials away
from the primer.
|
|
|
6. |

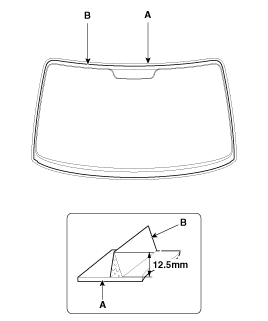

Pack adhesive into the cartridge without air pockets to ensure
continuous delivery. Put the cartridge in a caulking gun, and run a
bead of adhesive (B) around the edge of the windshield (A) between the
fastener and molding as shown. Apply the adhesive within 30 minutes
after applying the glass primer. Make a slightly thicker bead at each
corner.
|
7. |
Use suction cups (A) to hold the windshield (B) over the opening,
align it with the alignment marks (C) made in step 15, and set it down
on the adhesive. Lightly push on the windshield until its edges are
fully seated on the adhesive all the way around. Do not open or close
the doors until the adhesive is dry.
|
8. |
Scrape or wipe the excess adhesive off with a putty knife or towel.
To remove adhesive from a painted surface or the windshield, wipe with
a soft shop towel dampened with alcohol.
|
9. |
Let the adhesive dry for at least one hour, then spray water over
the roof and check for leaks. If a leak occurs, let it dry, then seal
with sealant :
A. |
Let the vehicle stand for at least four hours after windshield
installation. If the vehicle must be driven within 4 hours,
it must be driven slowly.
|
B. |
Keep the windshield dry for the first hour after installation.
|
|
10. |
Installation the following items.
A. |
Front pillar trim
(Refer to the BD group - "Interior Trim")
|
B. |
Inside rear view mirror
(Refer to the BD group - "Mirror")
|
C. |
Windshield wiper arm
(Refer to the BD group - "Cowl Top Cover")
|
D. |
Cowl top cover
(Refer to the BD group - "Cowl Top Cover")
|
E. |
Windshield glass deicer connector
(Refer to the BE group - "Windshield Wiper")
|
|
Components
1. Windshield glass
...
